產品參數

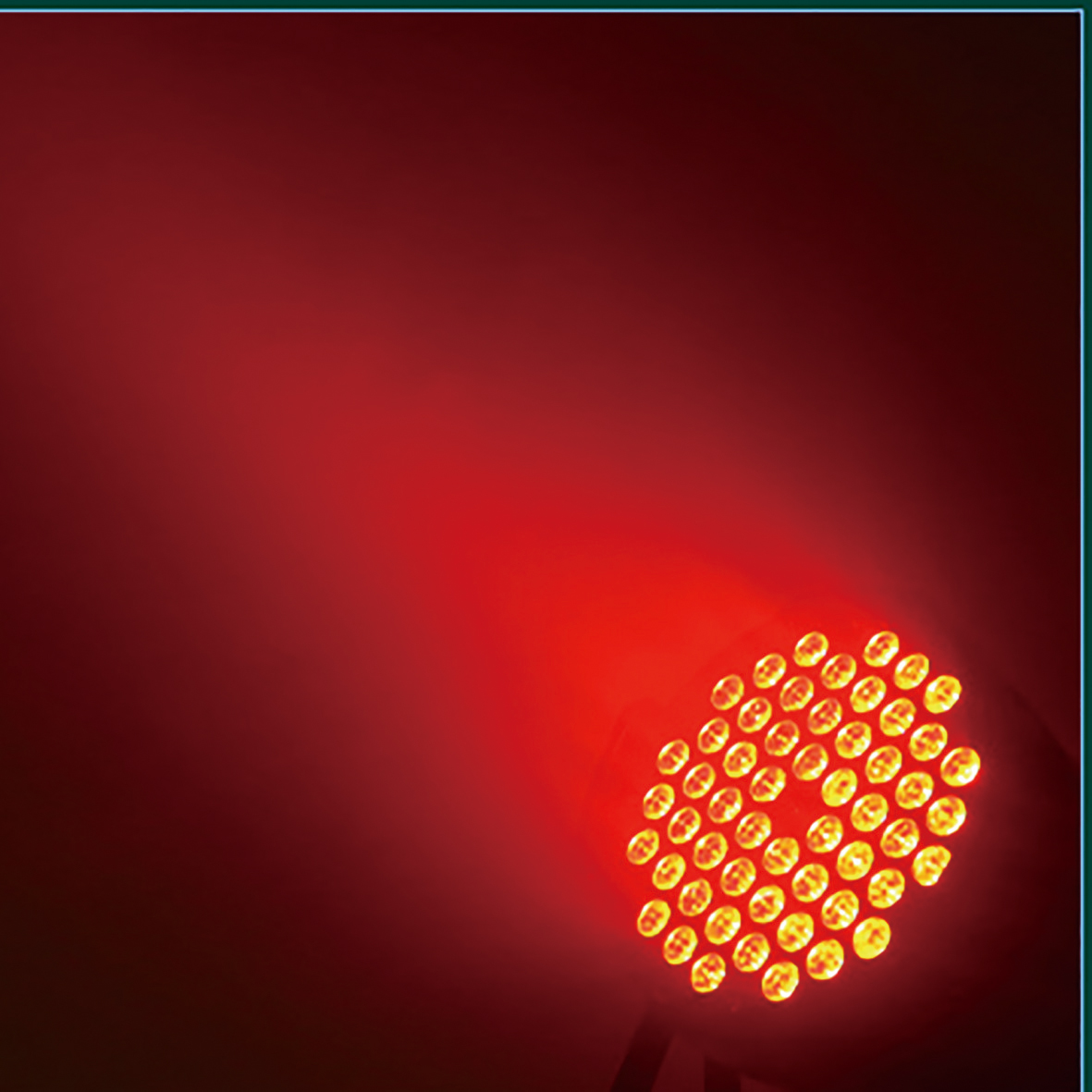

54顆LED面光帕燈
XL-5403M
額定電壓：AC110V～240V,50～60Hz
功率:180W
光源：54×3W LED W28,Y26/（可做單色雙色）平均壽命：50000H
色溫校正：3200K～7200K線性調節
透鏡角度：25°(15°、45°可選)
發光角度：可手動調節角度
頻閃：獨立電子頻閃1-25Hz，可隨機頻閃，脈沖頻閃，同步異步頻閃，單色、混色溫頻閃
混色：W28,Y26線性混色，0-100%飽和度可調
電子調光：0-100%獨立電子線性調光，攝像視頻真實無閃爍，主從自走自動同步功能，控臺正常控制自走永久同步
數碼管顯示菜單：調用各種場景，內置程序可以直接調用執行
控制模式：多種聲控、DMX512、內置程序自走、主從
通道：2、4通道(二種通道模式可選)
燈具連接：三芯信號線IN/OUT 電源線IN/OUT
特點：鑄鋁外殼，光效高，混光均勻，性能穩定，配一進一出手拉手1.2米長電源、信號線，1024級超高灰度調光更加柔和
防護等級：電氣Ⅱ級，防火V-1，防護IP20
聲控靈敏度：65-130dB
工作環境：-20℃~40℃
采用超高透光率透鏡,配上高亮度燈珠,設控臺調節線性亮度功能,產生精密、明亮、銳利的光束
設有數碼顯示幕控制DMX編碼及燈體功能選擇,內置抗干擾電路及燈體超溫保護 ，其結構完善緊密,高速頻閃可于1-10次/秒不間斷連續頻閃，外表采用鋁合金制定而成,配合現代感的流線型外型設計,使其外觀整齊亮麗 RGBW混合無數個顏色,演繹全新的現代繽紛的色彩
Rated voltage: AC110V~240V, 50~60Hz
Power: 180W
Light source: 54 × 3W LED W28, Y26/(can be used for single color and dual color) Average lifespan: 50000H
Color temperature correction: 3200K~7200 K linear adjustment
Lens angle: 25 ° (15 °, 45 ° optional)
Luminous angle: can be manually adjusted
Strobe: Independent electronic strobe 1-25Hz, random strobe, pulse strobe, synchronous step strobe, monochrome, mixed color temperature strobe
Color mixing: W28, Y26 linear color mixing, 0-100% saturation adjustable
Electronic dimming: 0-100% independent electronic linear dimming, real and flickerless camera video, automatic synchronization function between master and slave, normal control of the control console, permanent synchronization of self walking
Nixie tube display menu: call various scenes, and the built-in program can be directly called for execution
Control modes: multiple voice controls, DMX512, built-in program self-propelled, master-slave
Channel: 2, 4 channels (two channel modes are optional)
Lamp connection: three core signal wire IN/OUT power wire IN/OUT
Features: Cast aluminum shell, high light efficiency, uniform light mixing, stable performance, equipped with one in one out handle, 1.2-meter long power and signal cable, 1024 level ultra-high grayscale dimming for softer performance
Protection level: Electrical level II, fire resistance V-1, protection Ip20
Voice control sensitivity: 65-130dB
Working environment: -20 ℃~40 ℃
Adopting ultra-high transmittance lenses, equipped with high brightness light beads, and equipped with a control console to adjust linear brightness function, producing precise, bright, and sharp beams of light
It is equipped with digital display screen control DMX code and lamp body function selection, built-in anti-interference circuit and lamp body overtemperature protection. Its structure is perfect and compact. High speed strobe can be continuously strobe 1-10 times/second. Its appearance is made of aluminum alloy. With the modern streamline design, its appearance is neat and bright. RGBW mixes countless colors to deduce new modern and colorful colors
